Project 03：External LED Flashing

1. Description

There is an onboard LED in Raspberry Pi Pico,which is a GP25 pin attached to the Raspberry Pi Pico. In this project, we will learn the effect of making the onboard LED blink.

2. Components

image-20230508171033042

Raspberry Pi Pico*1

Raspberry Pi Pico Expansion Board*1

image-20230508171157405

image-20230508171049902

USB Cable*1

Breadboard*1

image-20230508171144938

image-20230508171150030

Red LED*1

220Ω Resistor*1

image-20230508171220670

Jumper Wire*2

3.Component Knowledge

LED:

image-20230508171144938

It is a kind of semiconductor called “light-emitting diode”, which is an electronic device made of semiconductor materials (silicon, selenium, germanium, etc.). It has an anode and a cathode. The short lead (cathode) is grounded. The long lead (anode)is connected to 5V.

image-20230509083517392

Resistor

A resistor is an electronic component in a circuit that restricts or regulates the flow current flow. Its unit is(Ω). 1 mΩ= 1000 kΩ，1kΩ= 1000Ω.

image-20230508171331600

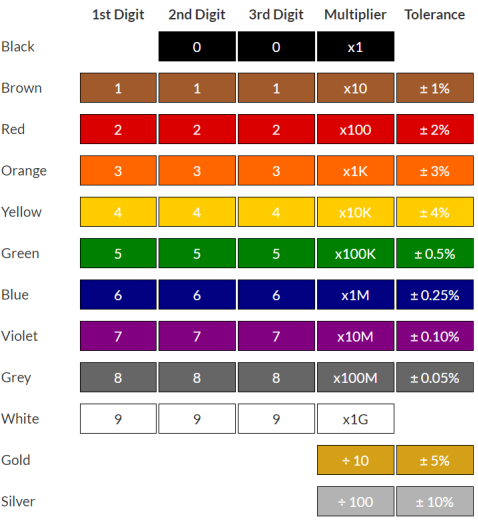

We can use resistors to protect sensitive components, such as LEDs. The strength of the resistance is marked on the body of the resistor with an electronic color code. Each color code represents a number, and you can refer to it in a resistance card.

image-20230509083532029

In this kit, we provide eight 5-band resistors with different resistance values. Take three 5-band resistors as an example.

220Ω resistor*10

image-20230509083614286

10KΩ resistor*10

image-20230509083628400

1KΩ resistor*10

image-20230509083840494

The connection between current, voltage, and resistance can be expressed by the formula: I=U/R.In the figure below, if the voltage is 3V, the current through R1 is: I = U / R = 3 V / 10 KΩ= 0.0003A= 0.3mA.

image-20230509083851612

Breadboard

A breadboard is used to build and test circuits quickly before finalizing any circuit design. The breadboard has many holes into which circuit components like integrated circuits and resistors can be inserted. A typical breadboard is as follows.

image-20230509083901531

The bread board has strips of metal which run underneath the board and connect the holes on the top of the board. The metal strips are laid out as shown below. Note that the top and bottom rows of holes are connected horizontally while the remaining holes are connected vertically.

image-20230509083909069

The first two rows (top) and the last two rows (bottom) of the breadboard are used for the positive (+) and negative (-) terminals of the power supply, respectively. The conductive layout of the breadboard is shown in the following diagram.

image-20230509083916751

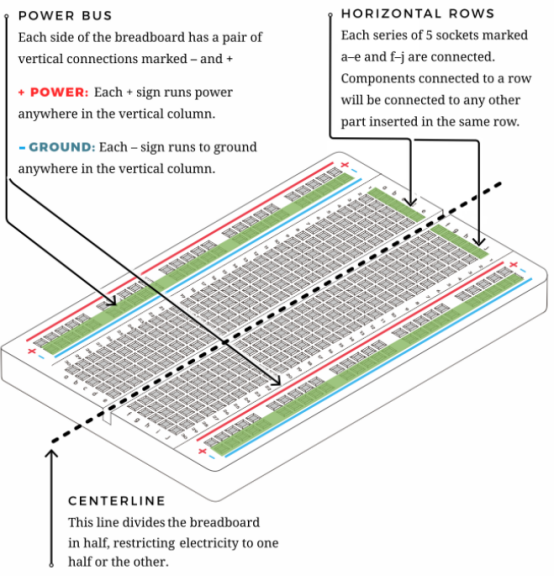

When we connect DIP (Dual In-line Packages) components, such as integrated circuits, microcontrollers, chips and so on, we can see that a groove in the middle isolates the middle part, so the top and bottom of the groove is not connected. DIP components can be connected as shown in the figure below.

image-20230509083924428

image-20230509083935854

4. Circuit Diagram and Wiring Diagram

How to use the keyestudio raspberry pico expansion board

Stack the pico board onto the expansion board, as shown below;

image-20230509083953948

Interface the pico board with your computer with a USB cable.

image-20230508171624209

Circuit Diagram

Note: Cut off the pico board. Build up the circuit according to the circuit and wiring diagram.

Make sure the circuit is correct then connect the pico board to the computer.

Note: Avoid any possible short circuits (especially connecting 3.3V and GND)!

Warning: A short circuit may cause a large current in the circuit, causing components to overheat and permanent damage to the hardware.

image-20230509084005404

Wiring Diagram

image-20230509084050871

Note:

How to connect an LED

image-20230509084137247

How to identify the 220Ω five-band resistor

image-20230509084146605

5. Test Code：

According to the circuit diagram, when Pico’s GP16 outputs a high level, the LED will light up; when it outputs a low level, the LED light will be off. Therefore, we can make the LED flash repeatedly by controlling the GP16 to output high and low levels.

You can open the code we provide:

Go to the folder KS3026 Keyestudio Raspberry Pi Pico Learning Kit Basic Edition\2. Windows System\2. C_Tutorial\2. Projects\Project 03：External LED flashing\Project_03_External_LED_Flashing.

//**********************************************************************
/*
 * Filename    : External LED flashing
 * Description : Make an led blinking.
 * Auther      : http//www.keyestudio.com
*/
#define PIN_LED   16   //define the led pin

// the setup function runs once when you press reset or power the board
void setup() {
  // initialize digital pin LED as an output.
  pinMode(PIN_LED, OUTPUT);
}

// the loop function runs over and over again forever
void loop() {
  digitalWrite(PIN_LED, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(500);                       // wait for 0.5s
  digitalWrite(PIN_LED, LOW);    // turn the LED off by making the voltage LOW
  delay(500);                       // wait for 0.5s
}
//*************************************************************************************

Before uploading Test Code to Raspberry Pi Pico, please check the configuration of Arduino IDE.

Click “Tools” to confirm that the board type and ports.

image-20230509084201216

Click image-20230509084248092 to upload the test code to the Raspberry Pi Pico board.

image-20230509084434244

image-20230509084442243

6. Test Result

After the project code was uploaded successfully, the LED started flashing.

image-20230508172127414
